New Products
At Maple Leaf we're always working on new ideas, and developing and testing new products. Here are some of the latest.
Shorty4080K2 80m & 40m Dualband Dipole Antenna
We've improved our already-good "Shorty 40/80" antenna to perform even better in the phone portions of both the 80m and 40m bands
- Originally 78 feet long... now only 70 feet long!
- Supplied with approximately 50 feet of coax cable, UG176 reducer, and PL259 connector
- Any length of 50 Ohm coax can be added on to the supplied coax without degrading the VSWR response
- Optimized to work best at a height of around 30 feet, but will perform even better if installed higher
- Kit version only $99.95
- Fully assembled version only $119.95
For more about this antenna have a look at our Dipole Kits page

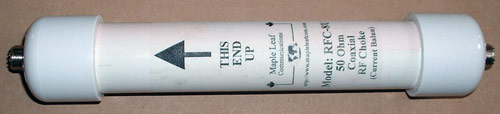

1:1 In-Line RF Choke
- All models have SO239 input connector on both ends
(type N-female connectors available upon request) - Consider 160m thru 6m performance or 80m thru 6m performance
- 5000W power handling when matched to a 50 Ohm antenna
- All hardware is stainless steel for long lasting performance
- Use in-line to prevent RF from getting into your shack along the coax
| Model Nos. | Ratio | Freq. Range | Price |
|---|---|---|---|
| RFC-8U | 1:1 | 80m-6m | $44.95 |
| RFC-12U | 1:1 | 160m-6m | $59.95 |
