6-Meter Antenna Products
6m Vertical Antennas
V6-1: Quarter-Wave - $69.95
- 1/4 wave ground plane
- complete with 4 x 60"(1.52m) ground radials
- 50-54 MHz, 2:1 VSWR Bandwidth >2MHz
- Complete with mounting bracket, fits up to 1.5"(3.81cm) dia. mast
- Aluminum & stainless steel
- SO239 input connector on RG213 coax pigtail
- Approximately 56"(1.42m) tall
- Click for a PDF product sheet
V6-2A: Half-Wave - $89.95
- 50-54 MHz
- Gain - 0dBd (2.15dBi)
- End fed 1/2 wave
- supplied with 4 x 36"(0.91m) counterpoise 'radials'
- 1.5:1 VSWR Bandwidth >2MHz typically
- Approximately 110" (2.79m) tall
- Complete with mounting bracket, fits up to 1.5" (3.81cm) dia. mast
- Aluminum & stainless steel
- SO239 input connector strandard
- Type N-female connector optional
- Approx. weight 3lbs (1.4kg)
- Click for a PDF product sheet
6m Repeater Antennas
- Side mounted half-wave dipole(s)
- Available in single, double, or 4-dipole arrays
- Patterns available are 1/4-wave cardioid, 3/8-wave, or 1/2-wave elliptical
- UHF female connector standard (type N is optional)
- DC grounded for lightning protection
- Tower cross support pipes and mounting brackets are extra
- Model SMD6 for single dipole -$125.00
- Model SMD6-2 for 2-dipole array - $279.00
- Model SMD6-4 for 4-dopole array - $549.00
6m Yagi Antennas
3E6-6: 3-Element Yagi - $149.95 - Lightweight & Portable
- Lightweight and portable - fits into 37" (94cm) box
- 3-elements, tapered design
- 50-51 MHz
- < 1.5:1 vswr at resonance
- 6dBd (8.1dBi) gain
- 20dB front-to-back ratio
- -3dB beamwidth (E x H) - 61° x 97°
- Complete with mounting bracket, fits up to 1.75" (4.45cm) dia. mast
- Aluminum & stainless steel
- SO239 input connector (accepts PL259)
- 69" (1.75m) boom length
- Total weight 5 pounds (2.27kg)
- 600 Watts maximum power
- Click for a PDF product sheet

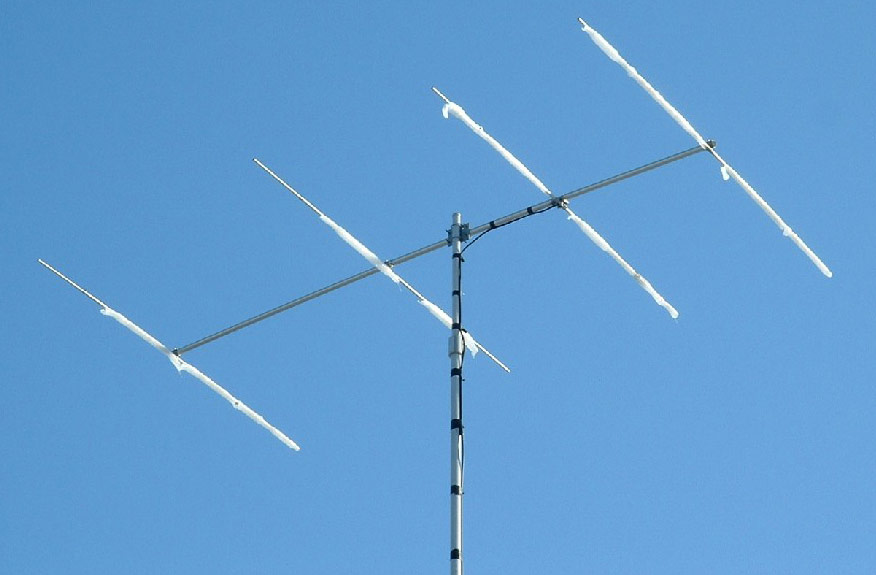

4E6-13: 4-Element Yagi - $269.00 - Heavy Duty & High Performance
- 4-element wide-spaced and designed to survive Canadian winters
(ice shown is not included in the price) - 50.0 - 50.5 MHz
- Gain - 8.5dBd (10.6dBi)
- 20dB front-to-back ratio
- -3dB beamwidth (E x H) - 51° x 65°
- Complete with mounting bracket, fits up to 2.38" (6.0cm) dia. mast
- Aluminum, stainless steel, and galvanized construction
- SO239 input connector on coax pigtail
- 13.2 foot (4.02m) boom length
- Approx. weight 16 pounds (7.26kg)
- 1000Watts maximum power input
- Click for a PDF product sheet
